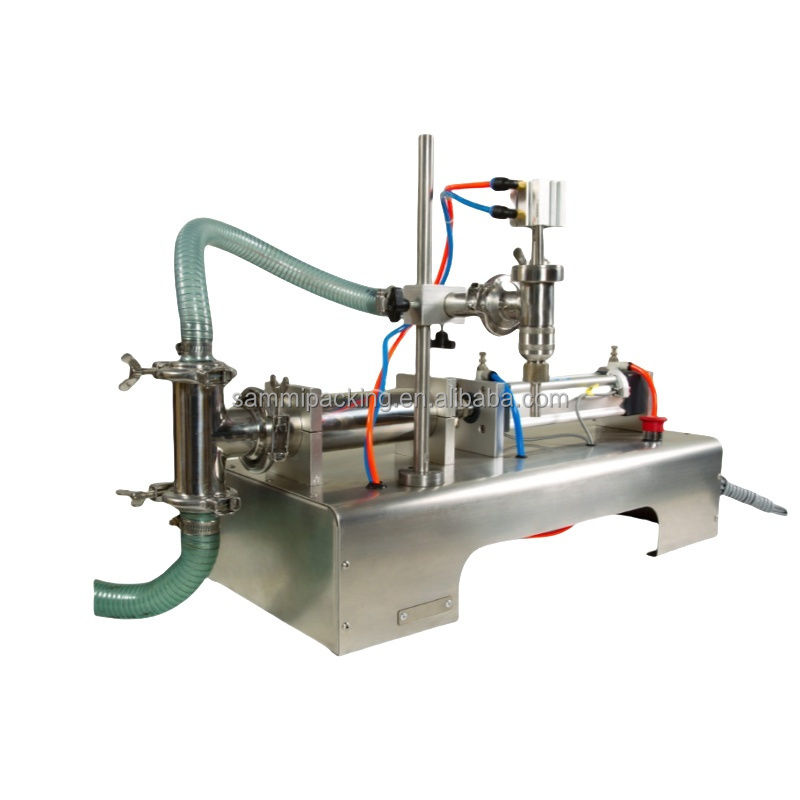

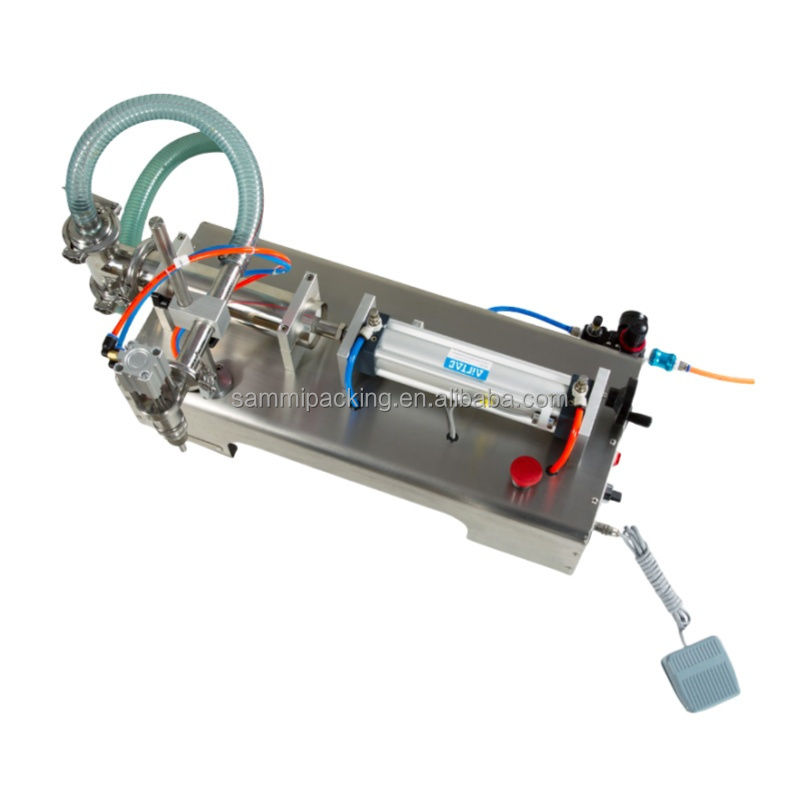

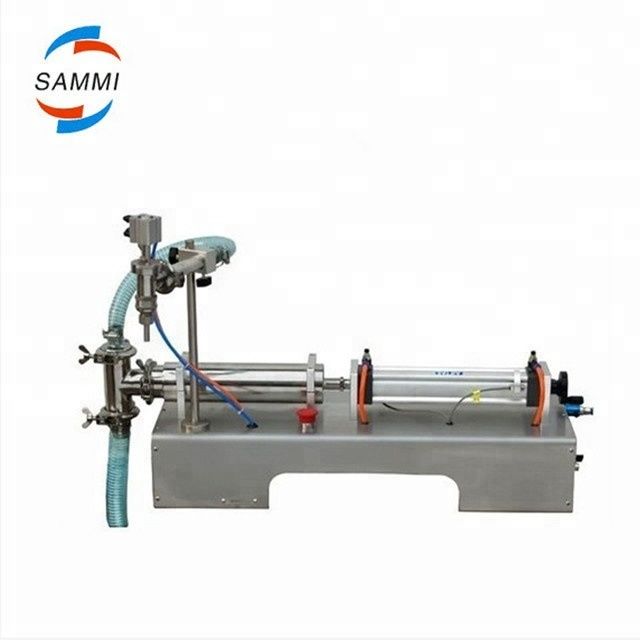

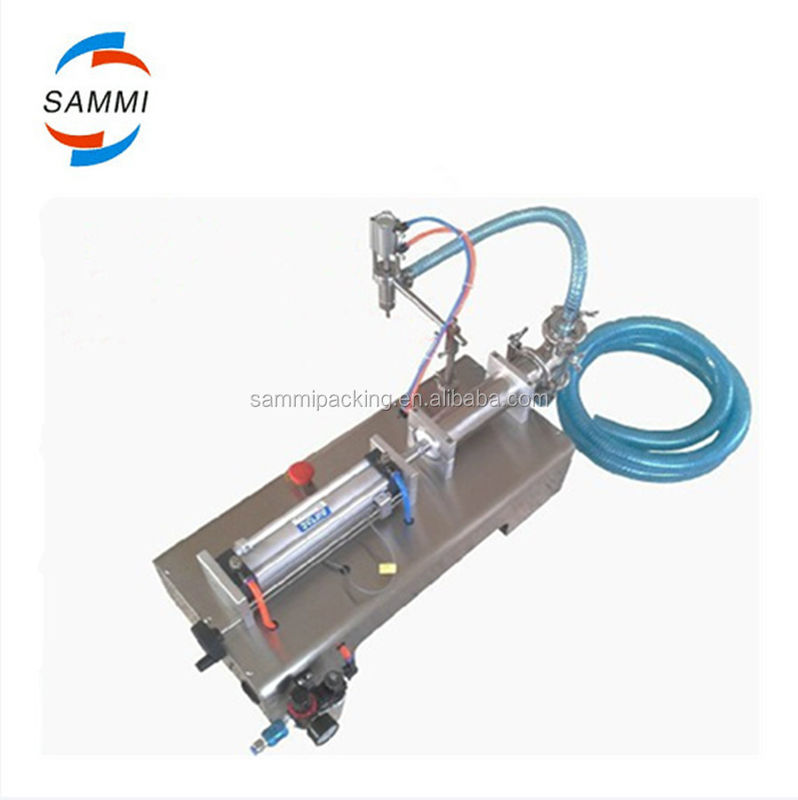

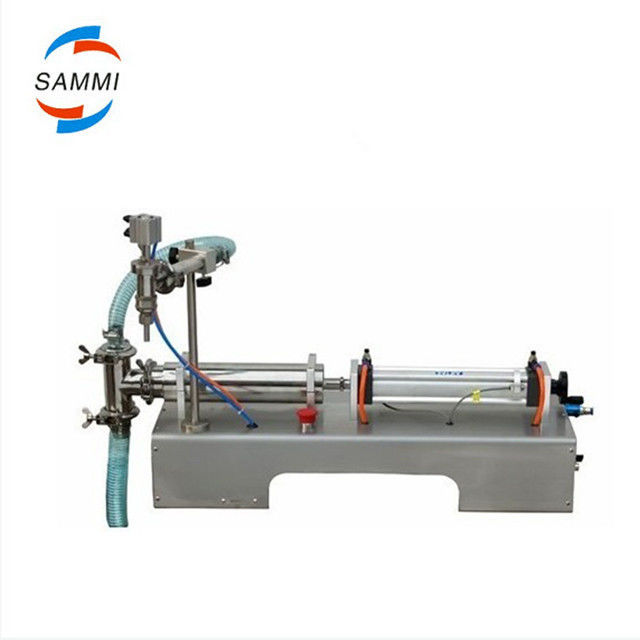

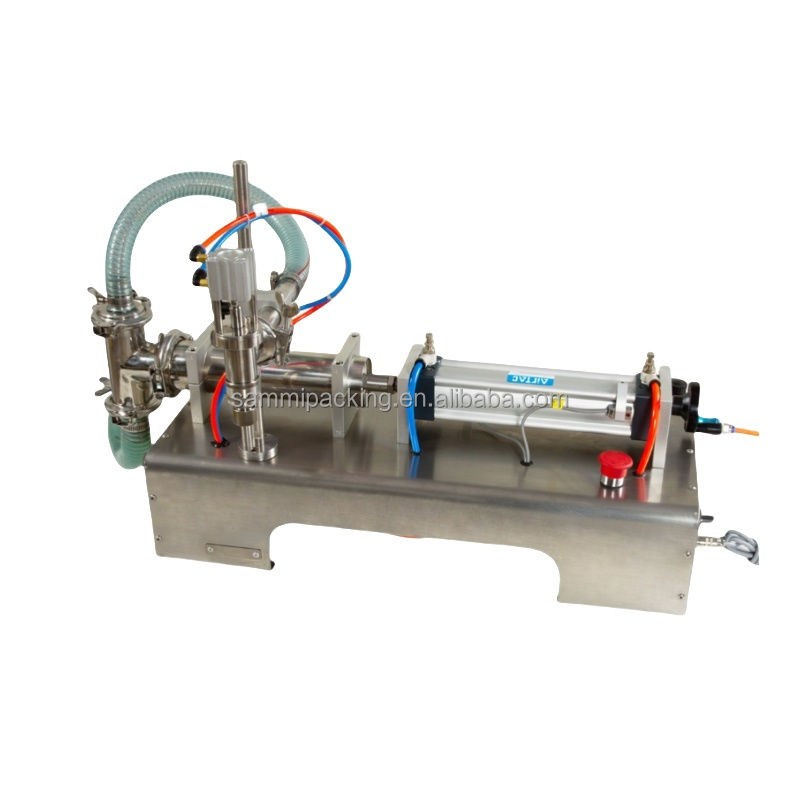

Thick Liquid Paste Pneumatic Filling Machine With Air Pressure Hopper 100-1000Ml

pneumatic filling machine with air pressure hopper

thick liquid paste filling machine 100-1000ml

automatic packaging machine for viscous liquids

Contattaci

Chiedi un preventivo

Thick Liquid Paste Pneumatic Filling Machine With Air Pressure Hopper 100-1000Ml

Dettagli del prodotto

applicazione:

食品, 饮料, 化学品 (cibo, bevande, prodotti chimici)

包装类型:

紙盒

Materiali di imballaggio:

Legno

Grado di automazione:

Semiautomatico

动力类型:

气动

tensione elettrica:

220V/110V

Prodotto originario:

Guangdong, Cina

品牌:

Sammi

尺寸 ((长×宽×高):

96*45 * 38mm

periodo di conservazione:

1 anno

核心卖点:

Lunga durata di utilizzo

riempitivo:

Acqua, olio, succo

Precisione di riempimento:

Rapporto di prova meccanica:

可提供

视频 fabbrica di verifica:

可提供

Componenti principali:

Motore elettrico, Altro

售后服务体系 sistema di servizio:

视频技术支持, 在线支持

Peso (KG):

材料:

Acciaio

Materiali di riempimento:

Liquido a bassa viscosità

Gamma di riempimento:

2-50ml 10-150ml 30-300ml 50-500ml 100-1000ml

Velocità di riempimento:

10-30b/min

errore di compilazione:

± 1%

应用程序:

Medicina

Posizione del servizio locale:

无

Tipo di marketing:

Nuovi prodotti 2020

Condizioni:

Nuovo

Posizione della sala espositiva:

无

Evidenziare:

pneumatic filling machine with air pressure hopper

thick liquid paste filling machine 100-1000ml

automatic packaging machine for viscous liquids

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 set

Prezzo

$270-360 / set

Prodotti correlati

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Ottieni il miglior prezzo

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Ottieni il miglior prezzo

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Ottieni il miglior prezzo

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

Application:

This filling machine is improved on the basis of foreign advanced filling machine technology, with simple structure and reasonable design, high filling accuracy,very easy to operate. Applied in cosmetic,medical, chemistry, foodstuff, beverage,pesticides and special industries. It is an ideal equipment for filling adhensive fluid.

Characteristic:

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.

2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.

4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Technical Parameters:

Machine model	G1WY-100	G1WY-300	G1WY-500	G1WY-1000	G1WY-2500	G1WY-5000
Filling speed	5-20b/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	250-2500ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	≤±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can be customized according to customer,s requirement
