BZJ5038B Semi-Auto Sleeve Wrapper and BSE5040A Plastic PE Film Heat Tunnel Shrink Packaging Machine

semi-auto sleeve wrapper machine

plastic PE film shrink packaging machine

automatic heat tunnel packaging machine

Contattaci

Chiedi un preventivo

BZJ5038B Semi-Auto Sleeve Wrapper and BSE5040A Plastic PE Film Heat Tunnel Shrink Packaging Machine

Dettagli del prodotto

applicazione:

饮料, 日用品, 食品

包装类型:

Bottiglia

Materiali di imballaggio:

Legno

Grado di automazione:

Semiautomatico

动力类型:

气动

tensione elettrica:

220V /50-60HZ

Prodotto originario:

Guangdong, Cina

品牌:

SAMMIPACK

尺寸 ((长×宽×高):

2500*820 * 1680MM/1020x830 x 1980mm

售后服务体系 sistema di servizio:

Ricambi gratuiti

periodo di conservazione:

1 anno

核心卖点:

Lunga durata di utilizzo

Rapporto di prova meccanica:

可提供

视频 fabbrica di verifica:

可提供

Componenti principali:

电机

型号:

BZJ-5038/BSE-540

¥ dimensione (L x P x H) mm:

1500x500x400

Dimensione massima dell'imballaggio (mm):

420x270x330 mm

fonte di energia elettrica:

AC20KW/220V

Velocità del trasportatore:

0-10m/min

massimo carico:

30kg (massimo)

reticolare:

POF

产品:

袖套包装 contrazione 包装机

Tipo:

Macchina confezionatrice

适用业:

服装店

Peso:

500 kg

Evidenziare:

semi-auto sleeve wrapper machine

plastic PE film shrink packaging machine

automatic heat tunnel packaging machine

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 set

Prezzo

$2,500-3,000 / set

Prodotti correlati

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Ottieni il miglior prezzo

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Ottieni il miglior prezzo

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Ottieni il miglior prezzo

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

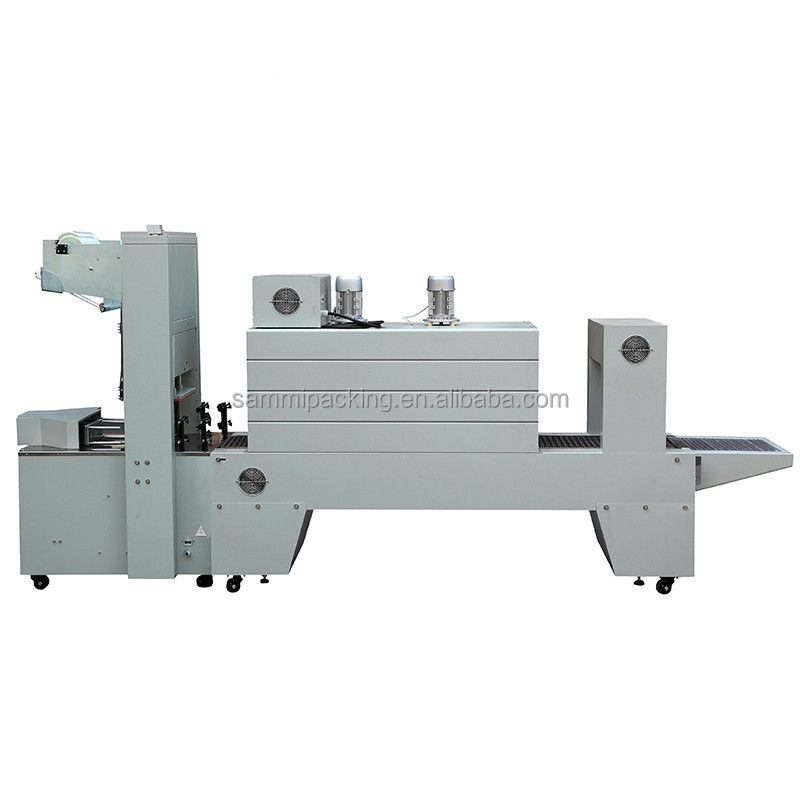

BZJ5038 Sleeve wrapper and BSE-5040 PE shrink machine

Product Description

BZJ5038 series sleeve wrapper is suitable for wrapping pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-5038 or other PE shrink tunnels.
The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time. Enlarge packing range or custom-made machine according to customer's requirement.

Characteristic:
1. Upper and down electromagnetic switch prevent sealing mistakes, and protect operator.

2. Every simply and easy to adjust machine to match different packing size.

3. Simple operation and maintenance with high packing efficiency.

4. 'Schneider' AC contractor, and Intelligent temperature controller performs stable.

5. Automatic alarm security system protects machine and operator.

6. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.

7. Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.

8. Super cooling system cools the packing and makes the figuration perfectly.

Specifications

Model	BZJ-5038(Pneumatic)	Model	BSE5040
Power supply	220V 50-60Hz 1.8KW	Power supply	220V 50-60HZ
Capacity	2-6pcs/minute	Heater power	20KW Adjuster
Sealing time/shrink time	0.5-1.5s, 0-0.6s	Conveyer speed	0-10m/minute
Air source supply	170L/min 0.3-0.5Mpa	Tunnel size(LWH)	1500500460MM
Film width	Max. 550mm	Conveyer loading	30KGS MAX.
Film thickness	0.04-0.12mm	Shrink film	PE,POF,PVC,PP
Max. packing dimension(LWH)	450 x 270 x 350mm	Machine weight	470KG
Min. packing dimension(LWH)	250 x 60 x 60mm	Machine size	25008201680MM
Machine size(LWH)	1020 x 830 x 1980mm
Packing size	11209402000mm
