This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit..
1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.
Application:
Suitable for medicine,daily life products, food and special industries.And it is an ideal device for adhesive fluid filling.
Principle

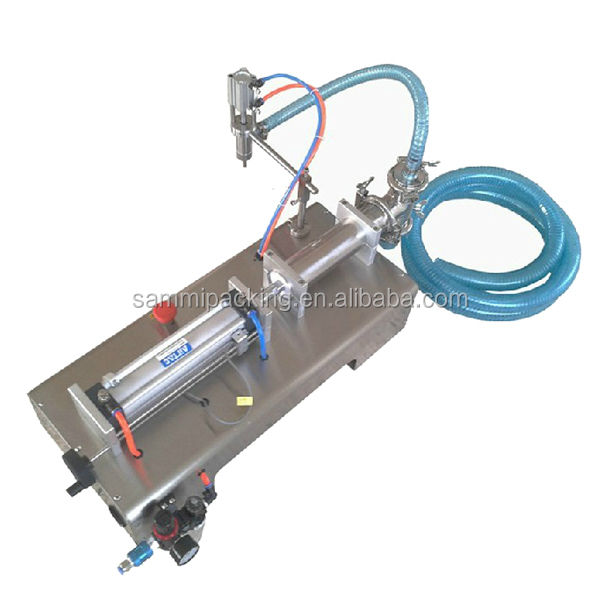

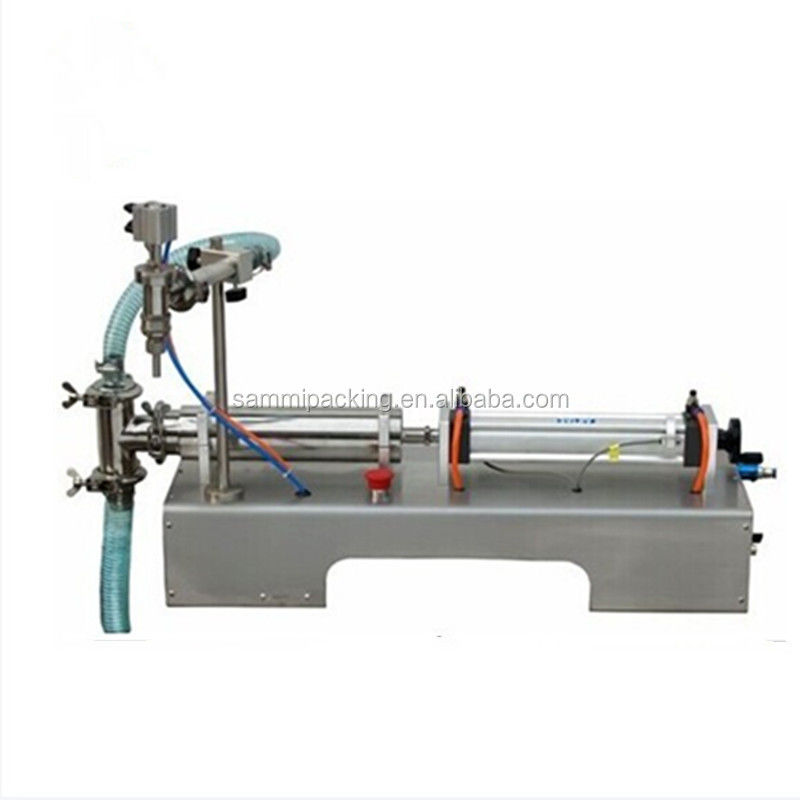

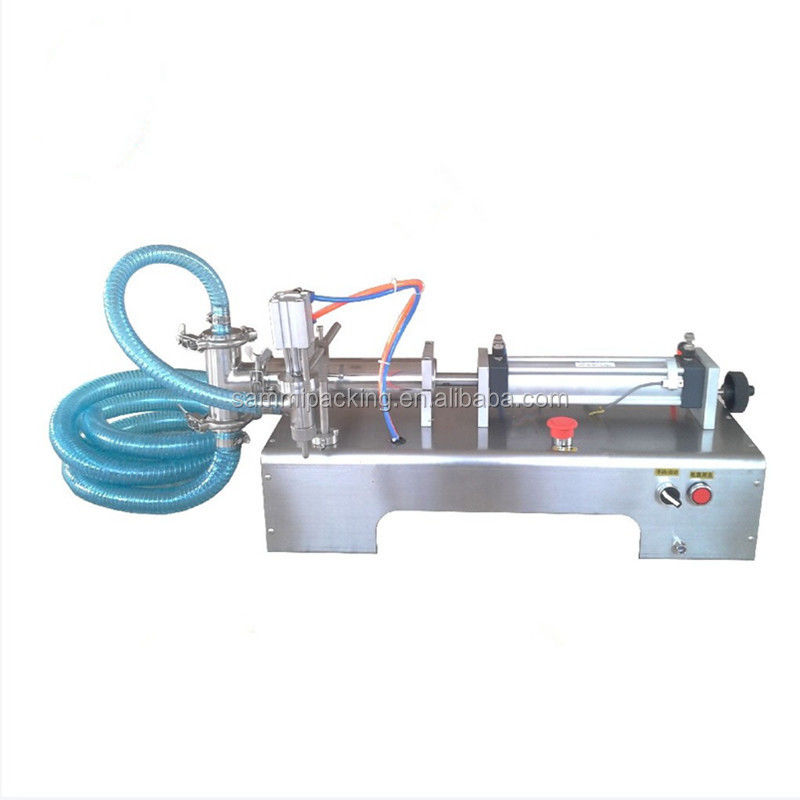

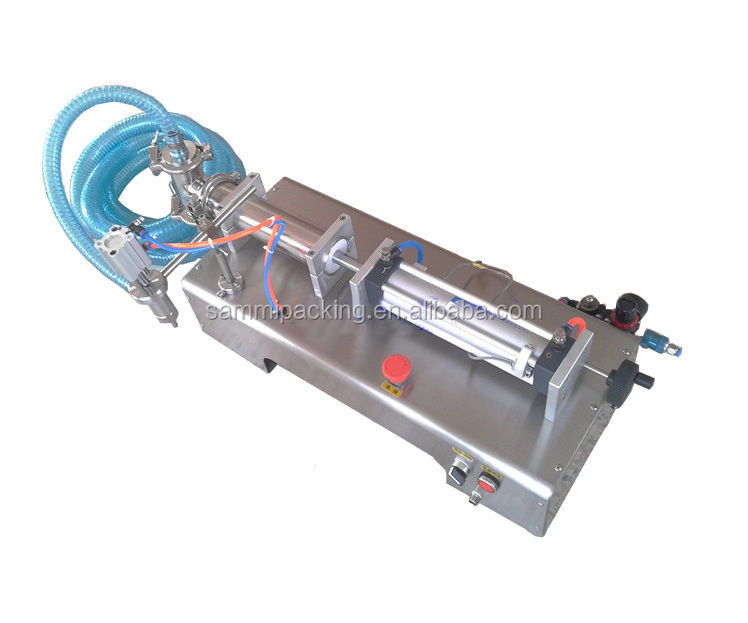

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
1. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
2. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements..
3. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy..
Technical Parameters:
Machine model
GFA-100
GFA-300
GFA-500
GFA-1000
GFA-3000
GFA-5000
Filling speed
10-35n/min(take water for example)
Filling range
10-100ml
30-300ml
50-500ml
100-1000ml
300-3000ml
500-5000ml
Air pressure
0.4~0.6mpa
Filling error
±1%
Machine size
806(L) × 180(W) ×690(H)mm
880(L) ×230(W) ×665(H)mm
880(L) × 230(W) ×665(H)mm
1065 (L) ×230(W) ×665(H)mm
1250(L) ×400(W) ×300(H)mm
1390(L) ×420(W) ×380(H)6mm
Machine weight
42 Kg
45Kg
48Kg
52Kg
64 Kg
86 Kg
Machine can offer customized according to customer request
